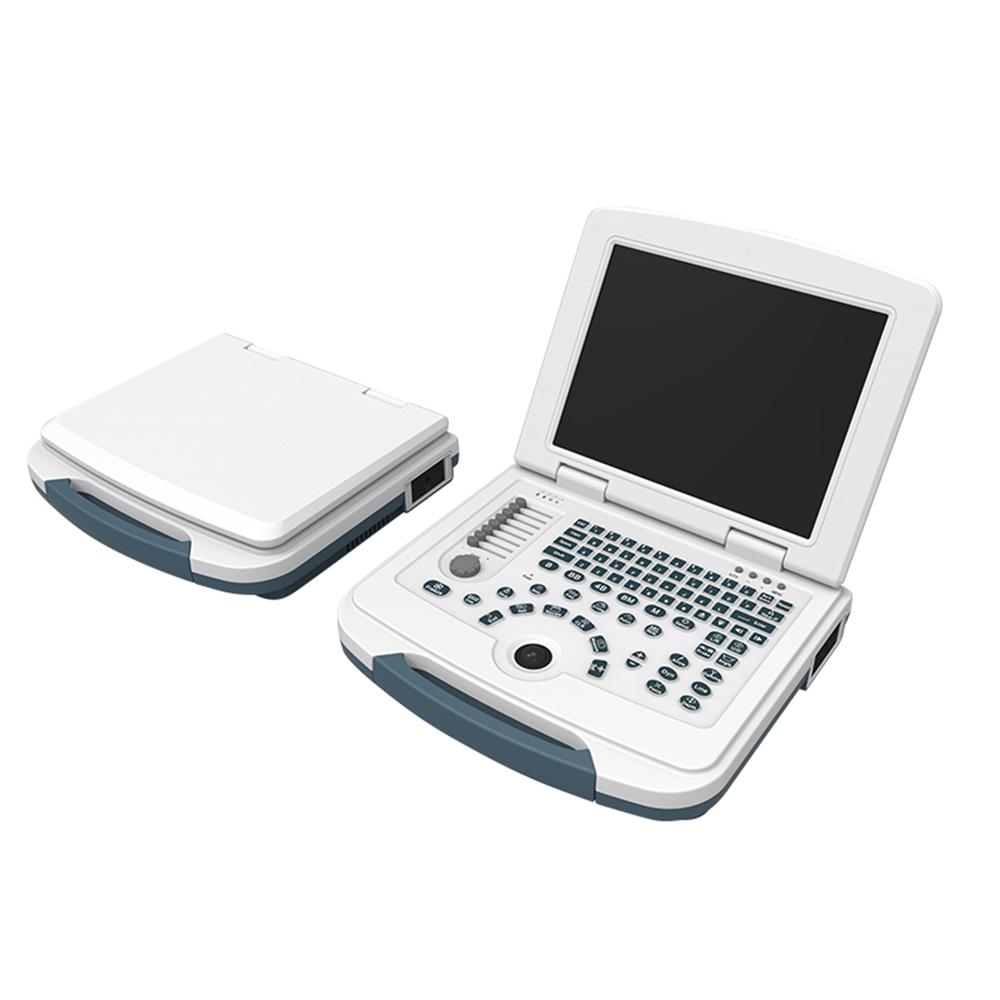

Dawei DW-580 portable Ultrasound system
DW580 portable Ultrasound system widely used in expert visiting, community services, family planning services, emergency centers, large medical vehicles, shipborne, or battlefield ambulance mobile vehicle services.
High array, high definition, multi-function display, more accurate diagnosis of lesions. 4-6 hours long standby time. High-quality digital imaging technology, the image is clearer, Rich probes, sound beam fan-shaped expansion technology, no splicing to ensure high speed and high quality, cross transmission and reception, eliminate side effects, full digitization, improve resolution, and penetration rate.
Features
Display Modes 3.5MHz/R60 convex array probe:B,B/B,4B,B+M,M 6.5MHz/R13 Dimpling array probe:B 7.5 MHz/L40 Line array probe
Image Mutiplying Factor 3.5MHz/R60 convex array probe: ×0.8, ×1.0, ×1.2, × 1.5,×1 .8, ×2.0 ( 6modes)×0.8, ×2.0 (display penetration depth) 6.5MHz/R13 Dimpling array probe: ×0.8, ×1.0, ×1.2, × 1.5 (4 modes) 7.5MHz/L40 Line array probe: ×0.8, ×1.0, ×1.2, × 1.5 (4 modes)
E-zoom magnify 2 times of real time image
Dynamic Range: 0~120dB adjustable
Focus Position: 1,2,3 and 4-segments dynamic electron focusing
Frequency Conversion: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion frequency range applies 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz can match high frequency probe
Measuring Function: Distance,circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks (BPD, GS, CRL, FL, AC), expected date of confinement and fetus weight, etc.
Annotation Function: hospital name, patient’s name, age and gender 64 body marks (with probe’s position); Full-screen character annotation; Real-time clock display Puncture Guide 3.5MHz convex array probe can display puncture guide line in B mode
