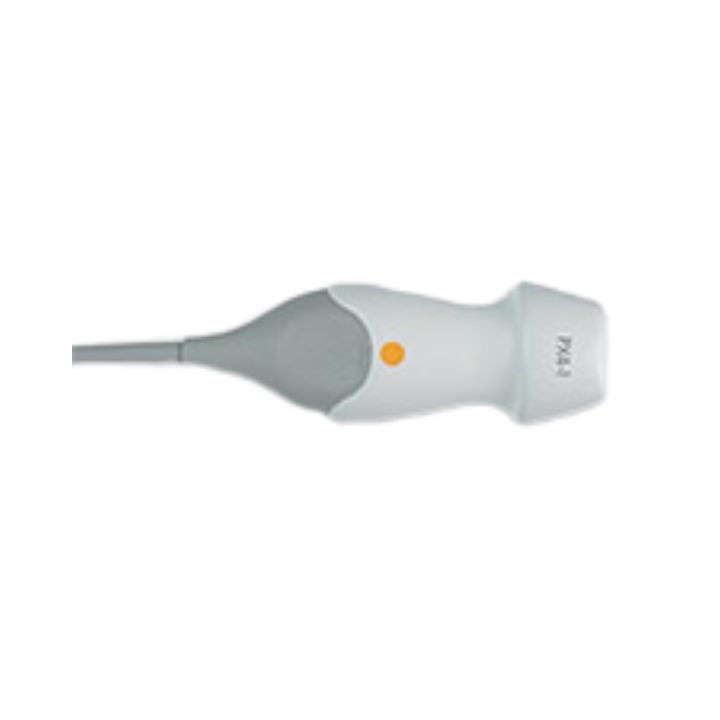

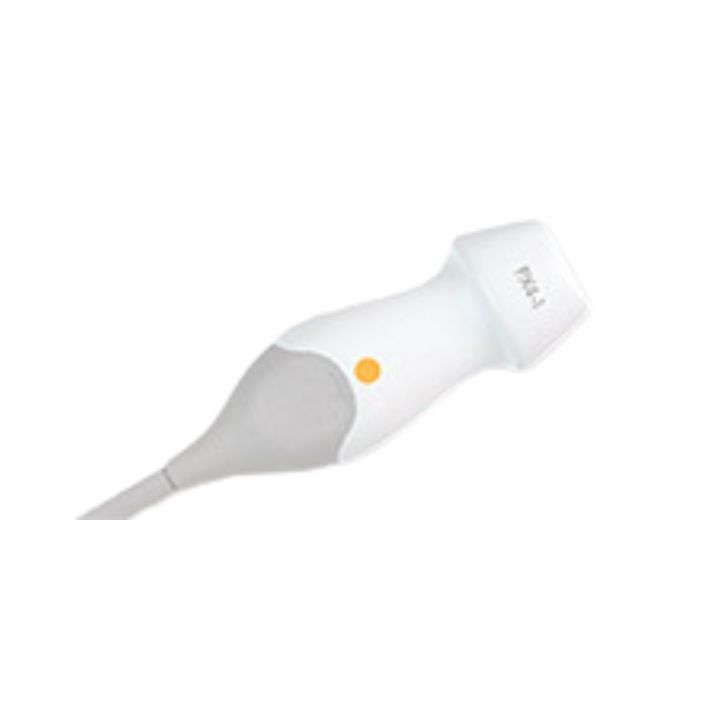

Siemens Sonoline G40 P4-2 Transducer
4-2 MHz Phased Array Transducer for Abdomen, Cardiac, Renal, OBGYN, Transcranial and Emergency Medicine
Bandwidth:
- 4-2 MHz, Phased Array Transducer
- 2D Mode Frequencies: 2.0 MHz*, 2.5 MHz, 2.9 MHz*, 3.1 MHz, 3.6 MHz
- THI Frequencies: 1.3 MHz*, 1.8 MHz, 1.5 MHz
- Color Doppler Frequencies 2.0 MHz, 2.7 MHz
- PW Doppler Frequencies 2.0 MHz, 2.7 MHz
- Aperture 14 mm x 17 mm
- Number of Elements 64
- Array Length 16.6 mm
- FOV (maximum) 90º
- Display Depth (maximum) 28 cm
* TCD – Transcranial
Features
- Wide bandwidth phased array transducer
- User selectable MultiHertz imaging
- Ergonomically designed form factor
- Lightweight transducer with flexible transducer cable
- 2D, THI, Color Doppler, Power Doppler, PW Doppler and M-Mode
Applications:
- Abdomen
- Cardiac
- Renal
- OB/GYN
- Transcranial
- Emergency medicine
Compatible Systems:
- SONOLINE G40™ ultrasound system
